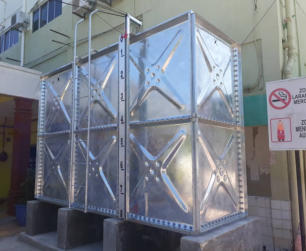

MY TANK MALAYSIA - STAINLESS STEEL PANEL TANK

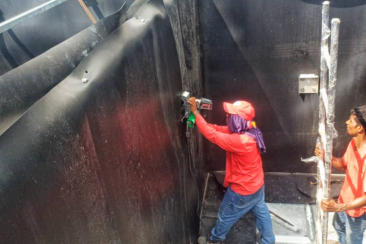

MY TANK MALAYSIA is committed to provide a hassle free service for the programmed maintenance and inspection along with the statutory servicing and reporting of the Tanks. MY TANK MALAYSIA will provide a comprehensive and detailed service to ensure the tanks installed will operate at optimum performance and efficiently as designed.

OUR STAINLESS STEEL PANEL MANUFACTURING STEPS

Producing the highest quality stainless steel panels takes stringent manufacturing practices – including using only equipment designed for stainless steel and preventing contamination with corrosion-prone metals.

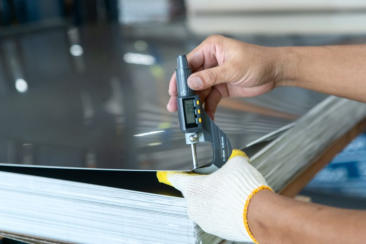

As the first step in the process, each raw stainless steel plate is quality-controlled for exact thickness and covered with a film to protect against scratches and foreign particles.

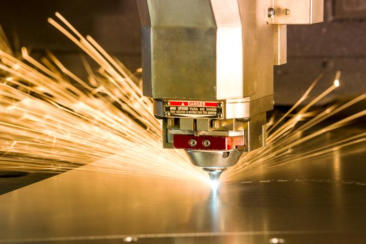

Panels are cut with fiber laser, which gives precise, burr-free cuts needing no further refinement, such as grinding, which can compromise the steel’s outer layer.

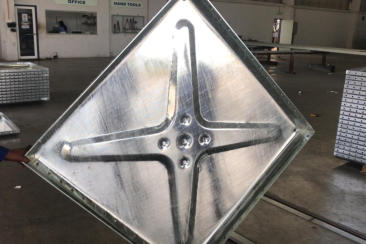

To meet our quality standards, each panel is molded on a high-power press (1000MT to 1500MT) using scrupulously clean molds.

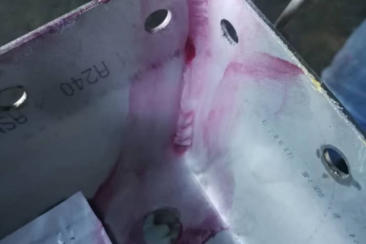

The panels are welded at each corner to form flanges. Welding is performed robotically for consistent quality.

Pickling and passivation following ASTM A380 Standard Practice for Cleaning, Descaling and Passivation of Stainless Steel Parts.

Hydrostatic test

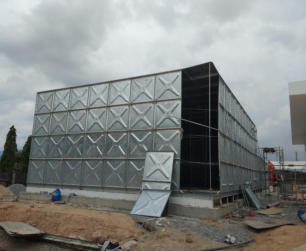

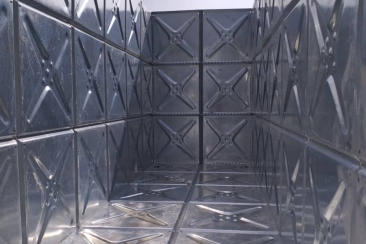

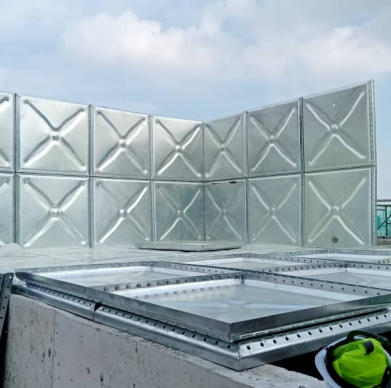

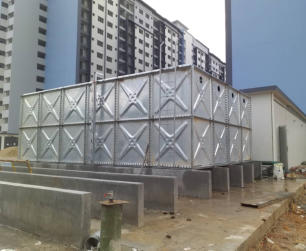

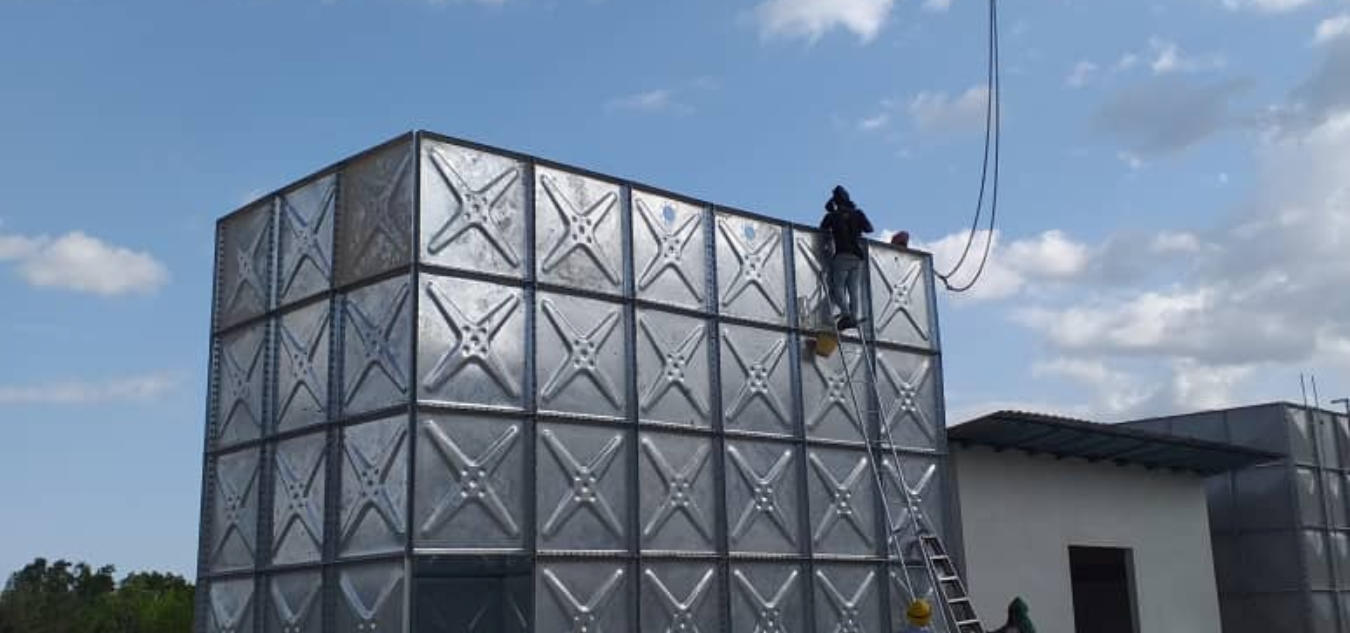

MY TANK MALAYSIA water tanks are modular - built from panels that are either 1m x 1m (approx. 3ft. x 3ft.) or 1.22m x 1.22m (approx. 4ft. x 4ft.) panels, making them easy to install. Their size, shape, and location are both highly adaptable, both at time of installation and later if needs have changed. They are watertight thanks to a state-of-the-art nontoxic sealant between the panels. Panels are easily transported in pallets of up to 25 per bundle (equating to one 24,000 liter tank). This portability enables a range of transportation options, minimizes transportation costs, and facilitates transportation to rural areas. Each pallet weighs less than 1000kg and can be unloaded separately - eliminating the need for cranes or other costly heavy equipment. No special skills or tools are needed to assemble – the bolting system requires only an impact wrench. If a tank needs repair, only the panels involved need to be changed - not the whole tank. Problems with plastic, concrete, and non- modular steel tanks can mean the entire tank has to be replaced.

MY TANK SDN BHD 202101045031 (1445331-A)

MY TANK MALAYSIA is a complete water storage solution for any environment or remote location. A range of square and round steel storage tanks are offered to accommodate your practical needs. Both varieties feature bolt reinforcement and are designed to hold large capacities of water for heavy- duty building services, agricultural and industrial uses. Common applications include: • Fire Water Storage • Domestic potable water storage for large buildings • Rain water reuse • Rural water reserves for farms • Treated water for commercial interests • Waste storage for industrial plants
